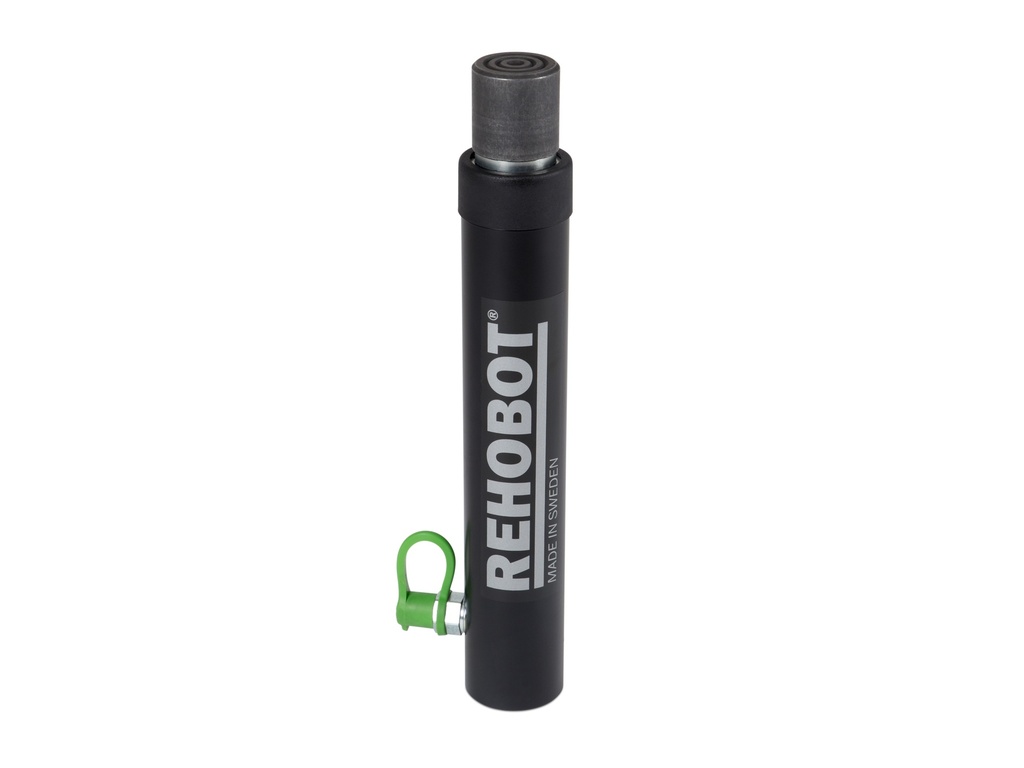

CF210BL - Push cylinders Blackline CF BL

https://www.sygmamachines.com/web/image/product.template/1458/image_1920?unique=9c16520

602,90 € 602.9 EUR 602,90 €

602,90 €

Not Available For Sale

Deze combinatie bestaat niet.

Rehobot

Algemene voorwaarden
30-dagen geld terug garantie
Verzending: 2-3 werkdagen

Metric Measurements

Name

Item code

Working press. MPa

Capacity kN (t)

Stroke mm

Stroke volume cm³

Diameter mm

Height mm

Weight kg

CF104BL

51184

70

49 (5)

127

90

37.5

267

1.7

CF204BL

51185

70

49 (5)

200

142

37.5

340

2.4

CF110BL

51188

70

111 (11)

150

239

56.5

321

4.7

CF210BL

51189

70

111 (11)

200

318

56.5

372

5.5

CF310BL

51190

70

111 (11)

300

477

56.5

474

7.0

CF120BL

51194

70

232 (24)

127

422

84

337

10.2

CF220BL

51195

70

232 (24)

200

664

84

410

12.4

CF320BL

51196

70

232 (24)

300

996

84

510

16.0

Imperial Measurements

Name

Item code

Working press. psi

Capacity kN (sh tn)

Stroke in

Stroke volume in³

Diameter in

Height in

Weight lbs

CF104BL

51184

10000

49 (5.5)

5.0

5.5

1.5

10.5

3.7

CF204BL

51185

10000

49 (5.5)

7.9

8.7

1.5

13.4

5.3

CF110BL

51188

10000

111 (12.5)

5.9

14.6

2.2

12.6

10.4

CF210BL

51189

10000

111 (12.5)

7.9

19.4

2.2

14.6

12.1

CF310BL

51190

10000

111 (12.5)

11.8

29.1

2.2

18.7

15.4

CF120BL

51194

10000

232 (26.1)

5.0

25.8

3.3

13.3

22.5

CF220BL

51195

10000

232 (26.1)

7.9

40.5

3.3

16.1

27.3

CF320BL

51196

10000

232 (26.1)

11.8

60.8

3.3

20.1

35.3
