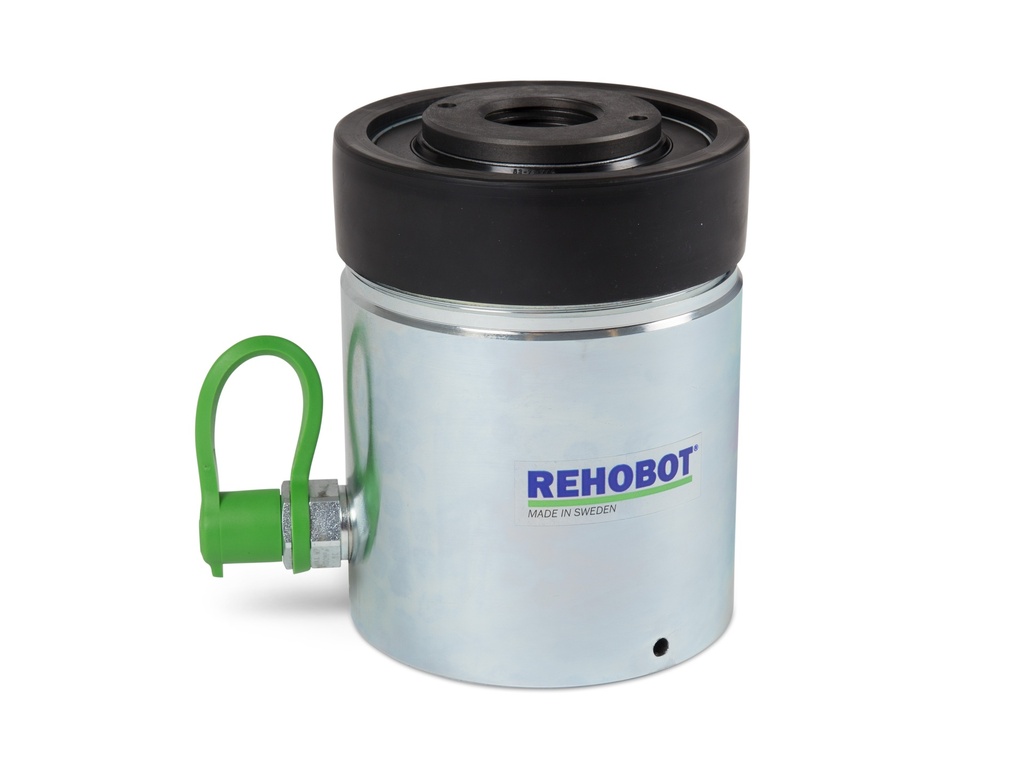

CH30-50 - Hollow cylinders steel CH/CHF

https://www.sygmamachines.com/web/image/product.template/1544/image_1920?unique=9c16520

766,30 € 766.3000000000001 EUR 766,30 €

766,30 €

Not Available For Sale

Deze combinatie bestaat niet.

Rehobot

Algemene voorwaarden
30-dagen geld terug garantie
Verzending: 2-3 werkdagen

Metric Measurements

Name

Item code

Working press. MPa

Capacity kN (t)

Stroke mm

Hole diam. mm

Stroke volume cm³

Diameter mm

Height mm

Weight kg

CH62

42503

70

61 (6)

51

17

44.7

55

110

1.6

CHF62

45244

70

61 (6)

51

17

44.7

55

136

2.0

CHF15-51

50670

70

148 (15)

50

22

106

75

158

4.0

CHF15-100

38230000

80

162 (15)

100

26

202

82

254

8.0

CH30-50

38230200

80

327 (33)

50

35

204

108

141

7.2

CH30-75

51022

80

327 (33)

75

35

306

108

158

8.5

CH50-40

38281500

80

500 (51)

40

37

260

124

124

9.2

Imperial Measurements

Name

Item code

Working press. psi

Capacity kN (sh tn)

Stroke in

Hole diam. in

Stroke volume in³

Diameter in

Height in

Weight lbs

CH62

42503

10000

61 (6.9)

2

0.7

2.7

2.2

4.3

3.5

CHF62

45244

10000

61 (6.9)

2

0.7

2.7

2.2

5.4

4.4

CHF15-51

50670

10000

148 (16.6)

2

0.9

6.5

3.0

6.2

8.8

CHF15-100

38230000

11600

162 (18.2)

3.9

1.0

12.3

3.2

10.0

17.6

CH30-50

38230200

11600

327 (36.8)

2.0

1.4

12.5

4.3

5.6

15.9

CH30-75

51022

11600

327 (36.8)

3.0

1.4

18.7

4.3

6.2

18.8

CH50-40

38281500

11600

500 (56.2)

1.6

1.5

15.9

4.9

4.9

20.3

Operating Instruction

Dimensional Drawing CH30

Dimensional Drawing CH50

Spare Part List
