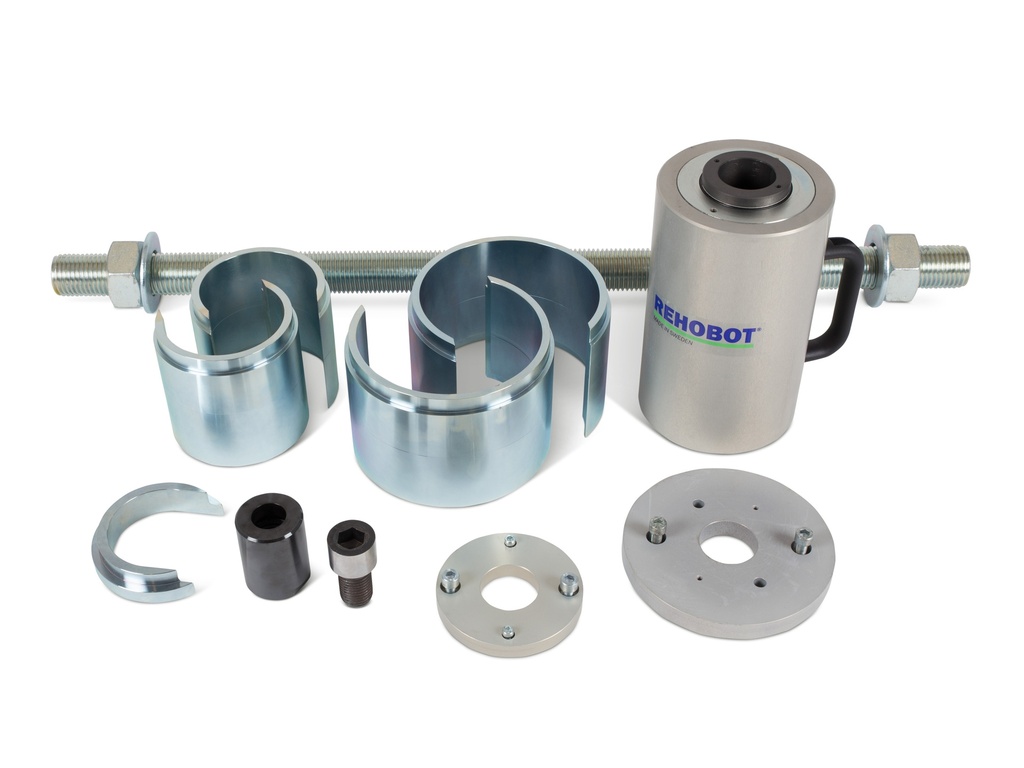

ETC50 - Bushing tool kits ETC

https://www.sygmamachines.com/web/image/product.template/1686/image_1920?unique=9c16520

3.856,80 € 3856.8 EUR 3.856,80 €

3.856,80 €

Not Available For Sale

Deze combinatie bestaat niet.

Rehobot

Algemene voorwaarden
30-dagen geld terug garantie
Verzending: 2-3 werkdagen

Product List

Metric Measurements

Name

Item code

Capacity kN (t)

Stroke mm

Working pressure MPa

ETC37

48072

358 (36)

51

70

ETC50

48073

508 (52)

104

70

Imperial Measurements

Name

Item code

Capacity kN (sh tn)

Stroke in

Working pressure psi

ETC37

48072

358 (39.7)

2

10000

ETC50

48073

508 (57.3)

4.1

10000


Included Parts



Name

ETC37

ETC50

Description

Technical data

CHFA372

Yes

-

Hollow cylider 37ton



CHFA504

-

Yes

Hollow cylinder 50ton



TR36-1000

Yes

-

Threaded rod with washers/nuts

M36 x 1000 10.9

TR48-1000

-

Yes

Threaded rod with washers/nuts

M48 x 1000 8.8

TAS95

Yes

Yes

Support sleeve

Ø95 mm

TC115A

Yes x2

Yes x2

C-Sleeve

Ø115 mm

TC175

-

Yes x2

C-Sleeve

Ø175 mm

TP115A

Yes

Yes

Adapter for TC115A

Ø115 mm

TP175

-

Yes

Adapter for TC175

Ø175 mm

TAD24-36

Yes

-

Thread adapter

M36 --> M24

TAD30-36

Yes

-

Thread adapter

M36 --> M24

TAD30-48

-

Yes

Thread adapter

M48 --> M30
