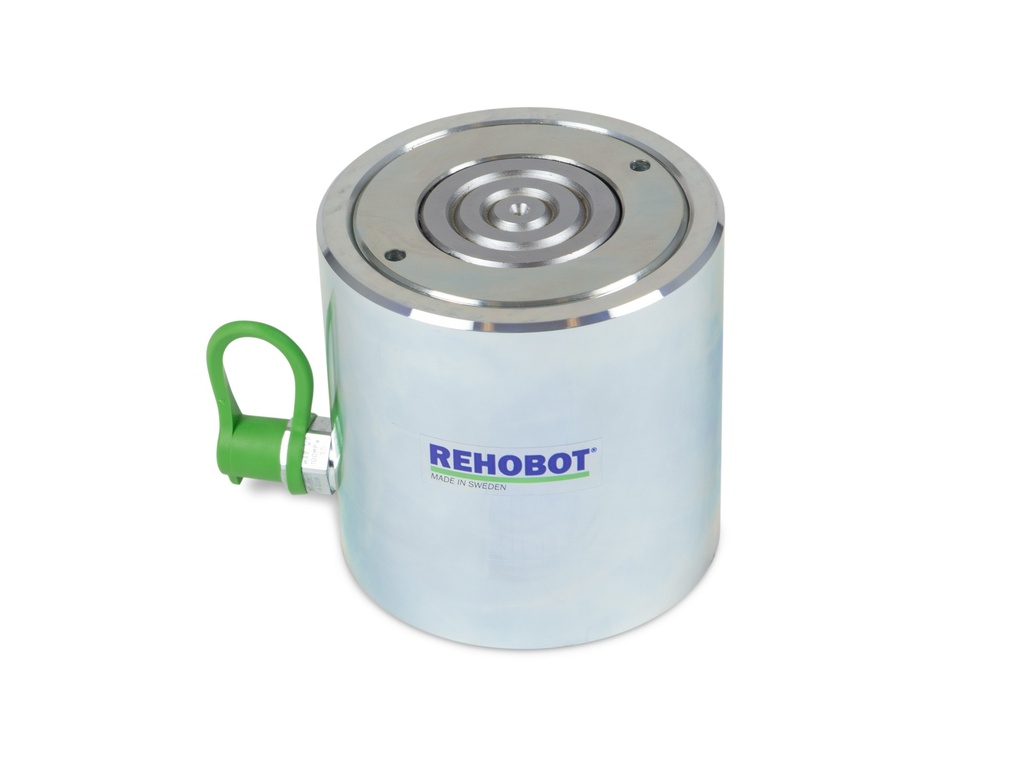

CLF450-40 - Push cylinders compact CL/CLF

https://www.sygmamachines.com/web/image/product.template/1555/image_1920?unique=9c16520

870,80 € 870.8000000000001 EUR 870,80 €

870,80 €

Not Available For Sale

Deze combinatie bestaat niet.

Rehobot

Algemene voorwaarden
30-dagen geld terug garantie
Verzending: 2-3 werkdagen

Metric Measurements

Name

Item code

Working press. MPa

Capacity kN (t)

Stroke mm

Stroke volume cm³

Diameter mm

Height mm

Weight kg

CL50-25

35680

70

49 (5)

25

18

39

60

0.7

CLF50-10

35132

70

49 (5)

10

7.1

60

37

0.6

CLF110-10

35133

70

111 (11)

10

15.9

80

43

1.5

CLF110-30

47067

70

111 (11)

28

44.5

65

75

1.8

CLF220-13

35320

70

218 (22)

13.5

42.1

100

50

2.6

CLF220-25

50450

70

218 (22)

25

78

96

65

3.25

CLF220-50

37553

70

218 (22)

50

156

85

107

3.9

CLF450-15

35305

70

445 (45)

15

95.4

134

68

6.4

CLF450-40

47071

70

445 (45)

40

254.4

120

120

8.8

CLF670-15

35413

70

665 (68)

15

142.5

146

78

9.2

CLF670-45

47075

70

665 (68)

45

427.5

146

130

14.3

CLF1100-15

35166

70

1078 (110)

15

231

180

90

17

CLF1100-40

47079

70

1078 (110)

40

616

180

140

23.7

CLF1500-15

35485

70

1498 (153)

15

321

220

100

28

CLF2000-16

35490

70

1985 (202)

16

454

250

110

40


Imperial Measurements

Name

Item code

Working press. psi

Capacity kN (sh tn)

Stroke in

Stroke volume in³

Diameter in

Height in

Weight lbs

CL50-25

35680

10000

49 (5.5)

1

1.1

1.5

2.4

1.5

CLF50-10

35132

10000

49 (5.5)

0.4

0.4

2.4

1.5

1.3

CLF110-10

35133

10000

111 (12.5)

0.4

1

3.2

1.7

3.3

CLF110-30

47067

10000

111 (12.5)

1.1

2.7

2.6

3

4

CLF220-13

35320

10000

218 (24.5)

0.5

2.6

3.9

2

5.7

CLF220-25

50450

10000

218 (24.5)

1

4.8

3.8

2.6

7.2

CLF220-50

37553

10000

218 (24.5)

2

9.5

3.4

4.2

8.6

CLF450-15

35305

10000

445 (50.0)

0.6

5.8

5.3

2.7

14.1

CLF450-40

47071

10000

445 (50.0)

1.6

15.5

4.7

4.7

19.4

CLF670-15

35413

10000

665 (74.7)

0.6

8.7

5.8

3.1

20.3

CLF670-45

47075

10000

665 (74.7)

1.8

26.1

5.8

5.1

31.5

CLF1100-15

35166

10000

1078 (121.2)

0.6

14.1

7.1

3.5

37.5

CLF1100-40

47079

10000

1078 (121.2)

1.6

37.6

7.1

5.5

52.2

CLF1500-15

35485

10000

1498 (168.4)

0.6

19.6

8.7

3.9

61.7

CLF2000-16

35490

10000

1985 (223.1)

0.6

27.7

9.8

4.3

88.2
