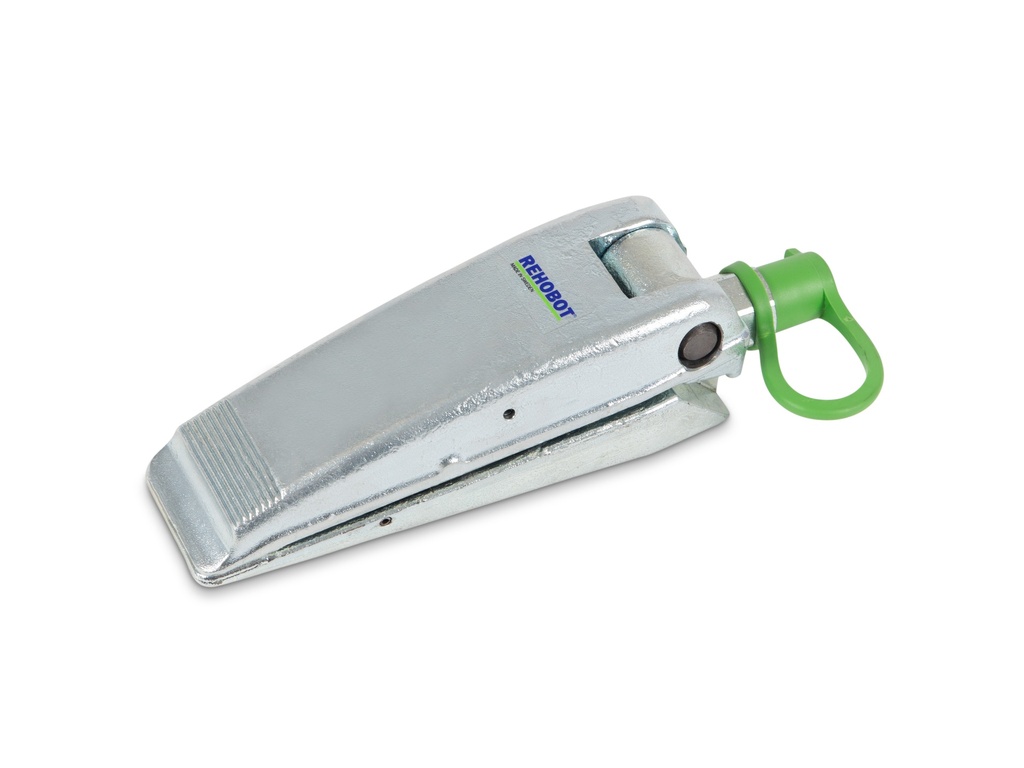

ESH10 - Spreaders ESH/CS
Metric Measurements
Name | Item code | Max. spreading force kN | Max. working pressure MPa | Eff. oil vol. cm³ | Max. opening mm | Min. height mm | Weight kg |
ESH10 | 14507 | 9 | 70 | - | 85 | 8 | 1,8 |
CS20-120 | 38362900 | 20 | 80 | 33 | 120 | 9 | 5,4 |
Imperial Measurements
Name | Item code | Max. spreading force kN | Max. working pressure psi | Eff. oil vol. in³ | Max. opening in | Min. height in | Weight lbs |
ESH10 | 14507 | 9 | 10000 | - | 3.4 | 0.3 | 4 |
CS20-120 | 38362900 | 20 | 11600 | 2.0 | 4.7 | 0.4 | 11.9 |
