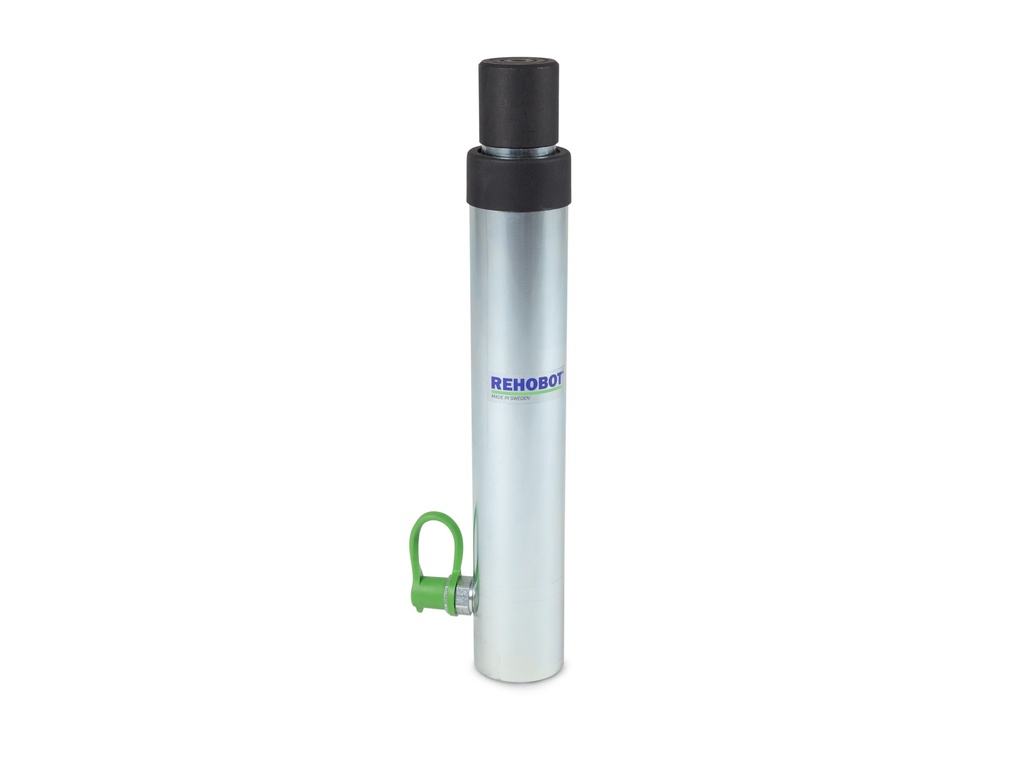

CF310C - Push cylinders CF/CFU

https://www.sygmamachines.com/web/image/product.template/1449/image_1920?unique=9c16520

574,30 € 574.3000000000001 EUR 574,30 €

574,30 €

Not Available For Sale

Diese Kombination existiert nicht.

Rehobot

Geschäftsbedingungen
30 Tage Geld-zurück-Garantie
Versand: 2-3 Geschäftstage

Metric Measurements

Name

Item code

Working press. MPa

Capacity kN (t)

Stroke mm

Stroke volume cm³

Diameter mm

Height mm

Weight kg

CF104B

27485

70

49 (5)

127

90

37.5

267

1.7

CF204B

27486

70

49 (5)

200

142

37.5

340

2.4

CF110C

43829

70

111 (11)

150

239

56.5

321

4.7

CF210C

43830

70

111 (11)

200

318

56.5

372

5.5

CF310C

43831

70

111 (11)

300

477

56.5

474

7.0

CF120A

24178

70

232 (24)

127

422

84

337

10.2

CF220A

24973

70

232 (24)

200

664

84

410

12.4

CF320A

24974

70

232 (24)

300

996

84

510

16.0

CFU2010C

43837

70

111 (11)

200

318

56.5

387

5.3

CFU2510C

43838

70

111 (11)

250

398

56.5

437

6.0

Imperial Measurements

Name

Item code

Working press. psi

Capacity kN (sh tn)

Stroke in

Stroke volume in³

Diameter in

Height in

Weight lbs

CF104B

27485

10000

49 (5.5)

5.0

5.5

1.5

10.5

3.7

CF204B

27486

10000

49 (5.5)

7.9

8.7

1.5

13.4

5.3

CF110C

43829

10000

111 (12.5)

5.9

14.6

2.2

12.6

10.4

CF210C

43830

10000

111 (12.5)

7.9

19.4

2.2

14.6

12.1

CF310C

43831

10000

111 (12.5)

11.8

29.1

2.2

18.7

15.4

CF120A

24178

10000

232 (26.1)

5.0

25.8

3.3

13.3

22.5

CF220A

24973

10000

232 (26.1)

7.9

40.5

3.3

16.1

27.3

CF320A

24974

10000

232 (26.1)

11.8

60.8

3.3

20.1

35.3

CFU2010C

43837

10000

111 (12.5)

7.9

19.4

2.2

15.2

11.7

CFU2510C

43838

10000

111 (12.5)

9.8

24.3

2.2

17.2

13.2

Operating Instruction

Dimensional Drawing

Spare Part List
